Front Axle Spring Set Foton Ollion 65.115 / Aumark / Alvand
OEM Code : L0292100040BO, LO292100040A0
Product Introduction
Front: Foton Ollin 65.115MWB 4.490~ 6.5Ton GVW, 8~10GCVW; Tare Weight 2.67 Ton ; Load Cap 3.83Ton; Aumark C BJ1051 6.5GVM; Foton Aumark/ Alvand 1051VC 6 Ton GVW; 1069/ 1093/ 1099/ 85.115MWB, 8.5 Ton GVW , 12 Ton GCVW, 3.1Ton Tare Weight, 5.4 Ton Load Capacity; Foton Aumark/ Alvand C BJ1061 8.2 Ton GVM
Reference OEM# L0292100040BO/LO292100040A0
Special properties

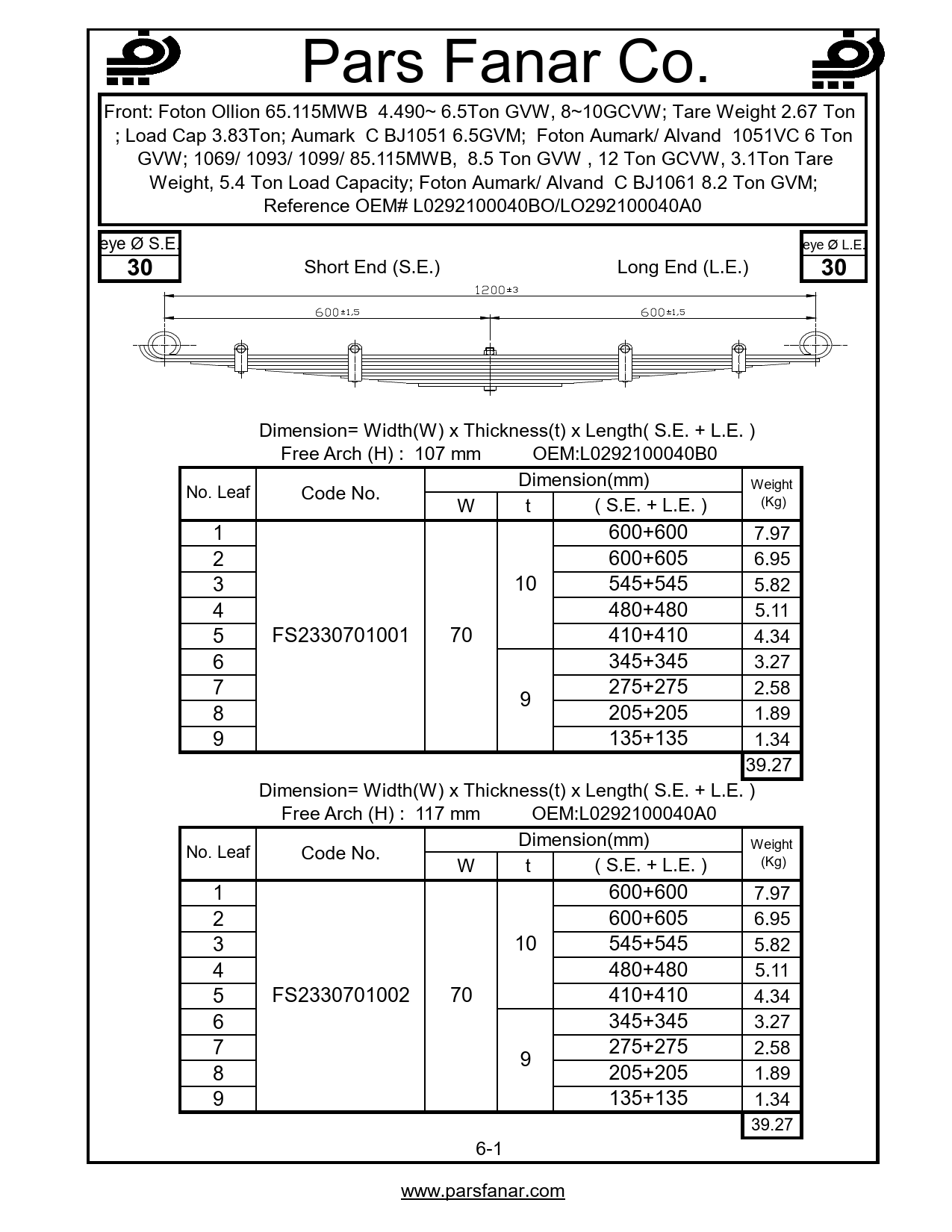

Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 107, 117 |
| Name of car/ cabin/ trilly | Foton 1069, Foton 1093, Foton 1099, Foton 12 Ton GCVW, Foton 3.1Ton Tare Weight, Foton 5.4 Ton Load Capacity, Foton 85.115MWB 8.5 Ton GVW, Foton Alvand 1051VC 6 Ton GVW, Foton Alvand C BJ1061 8.2 Ton GVM, Foton Aumark, Foton Aumark C BJ1051 6.5GVM, Foton GVW, Foton Load Cap 3.83Ton, Foton Ollin 65.115MWB 4.490~ 6.5Ton, Foton Tare Weight 2.67 Ton |
