دست فنر پارابولیک چرخ جلو Mercedes Benz
OEM Code : 6203200302
Product Introduction

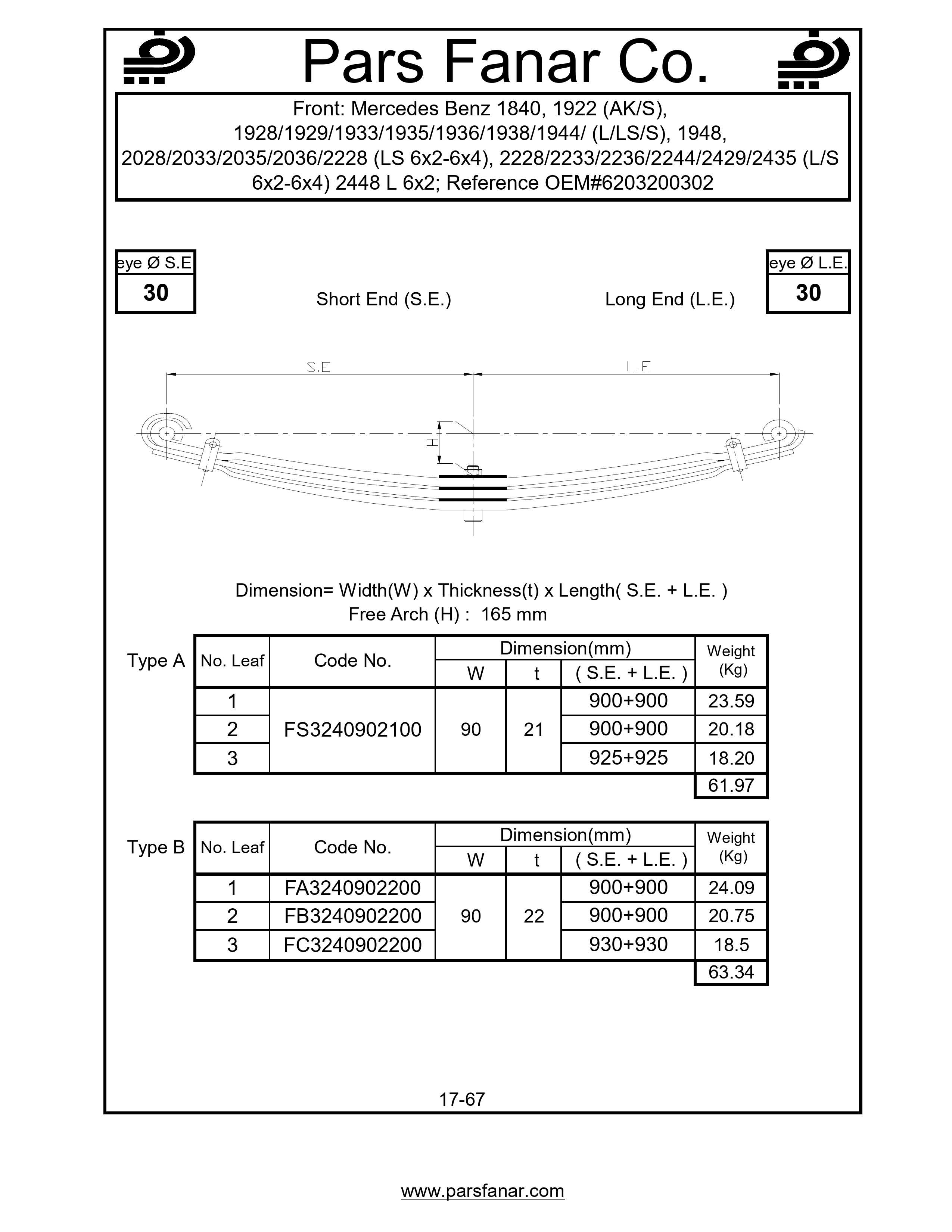

Front: Mercedes Benz 1840, 1922 (AK/S), 1928/1929/1933/1935/1936/1938/1944/ (L/LS/S), 1948, 2028/2033/2035/2036/2228 (LS 6×2-6×4), 2228/2233/2236/2244/2429/2435 (L/S 6×2-6×4) 2448 L 6×2
Reference OEM#6203200302
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 165 |
| Name of car/ cabin/ trilly | 1922 (AK/S), 1928/1929/1933/1935/1936/1938/1944/ (L/LS/S), 1948, 2028/2033/2035/2036/2228 (LS 6×2-6×4), 2228/2233/2236/2244/2429/2435 (L/S 6×2-6×4) 2448 L 6×2, Mercedes Benz 1840 |
