دست فنر پارابولیک چرخ جلو IVECO MP720
OEM Code : 8169109, 41213085, 8135441, 8135442, 8161629, 8189828, 8169092, 8169093
Product Introduction

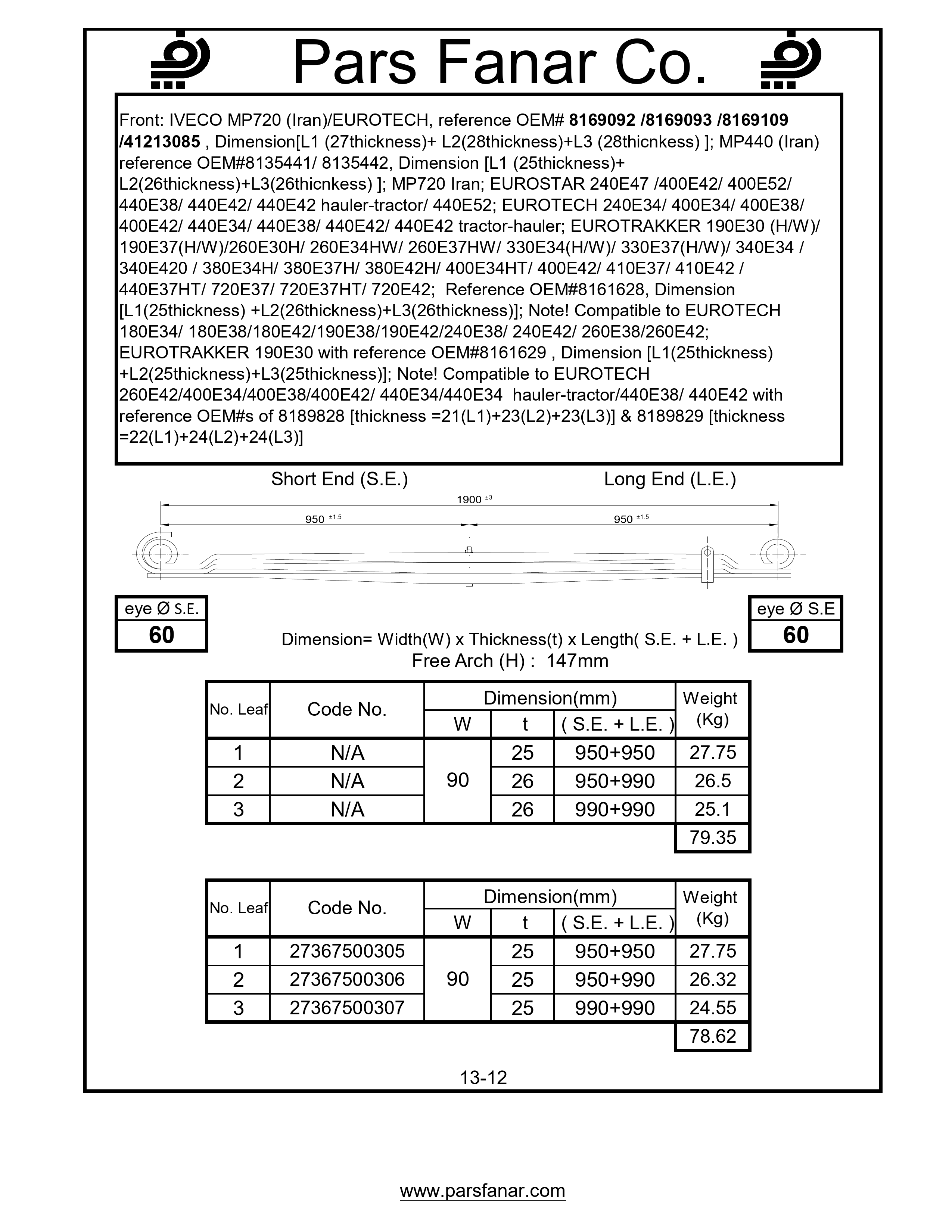

Front: IVECO MP720 (Iran)/EUROTECH
Reference OEM# 8169092 /8169093 /8169109 /41213085
Dimension[L1 (27thickness)+ L2(28thickness)+L3 (28thicnkess) ];
MP440 (Iran) reference OEM#8135441/ 8135442, Dimension [L1 (25thickness)+ L2(26thickness)+L3(26thicnkess) ]
MP720 Iran; EUROSTAR 240E47 /400E42/ 400E52/ 440E38/ 440E42/ 440E42 hauler-tractor/ 440E52
EUROTECH 240E34/ 400E34/ 400E38/ 400E42/ 440E34/ 440E38/ 440E42/ 440E42 tractor-hauler
EUROTRAKKER 190E30 (H/W)/ 190E37(H/W)/260E30H/ 260E34HW/ 260E37HW/ 330E34(H/W)/ 330E37(H/W)/ 340E34 / 340E420 / 380E34H/ 380E37H/ 380E42H/ 400E34HT/ 400E42/ 410E37/ 410E42 / 440E37HT/ 720E37/ 720E37HT/ 720E42; Reference OEM#8161628, Dimension [L1(25thickness) +L2(26thickness)+L3(26thickness)]; Note! Compatible to EUROTECH 180E34/ 180E38/180E42/190E38/190E42/240E38/ 240E42/ 260E38/260E42; EUROTRAKKER 190E30 with reference OEM#8161629
Dimension [L1(25thickness) +L2(25thickness)+L3(25thickness)]
Note! Compatible to EUROTECH 260E42/400E34/400E38/400E42/ 440E34/440E34 hauler-tractor/440E38/ 440E42 with reference OEM#s of 8189828 [thickness =21(L1)+23(L2)+23(L3)] & 8189829 [thickness =22(L1)+24(L2)+24(L3)]
Special properties
Technical Specifications
| Vehicle Type | |
|---|---|
| Installation Location | |
| OEM Code | 41213085, 8135441, 8135442, 8161629, 8169092, 8169093, 8169109, 8189828 |
| Leaf Spring Width | |
| Leaf Spring Thickness | |
| Number of Main Layers (M) Leaf Spring | |
| Short edge length - Leaf Spring | |
| Long edge length - Leaf Spring | |
| Eye diameter (Short edge - Leaf spring) | |
| Eye diameter (Long edge - Leaf spring) | |
| Leaf Spring Free Arch | 147 |
| Name of car/ cabin/ trilly | IVECO EUROSTAR 240E47 /400E42/ 400E52/ 440E38/ 440E42/ 440E42 hauler-tractor/ 440E52, IVECO EUROTECH 240E34/ 400E34/ 400E38/ 400E42/ 440E34/ 440E38/ 440E42/ 440E42 tractor-hauler, IVECO EUROTECH 260E42/400E34/400E38/400E42/ 440E34/440E34 hauler-tractor/440E38/ 440E42, IVECO MP720 (Iran)/EUROTECH |
